Download Scan Examples for Mechanical Components (CAD)
We invite you to explore real examples of 3D scans created using the D3D-s scanner. Download the STL files to examine the detailed precision and quality our scanner offers.
Our scanner is ideal for scanning engineering components, capturing exact dimensions and even the finest features. This lets you detect manufacturing defects or recreate parts whose drawings have been lost.
Click the green button below each photo to download the corresponding STL file.

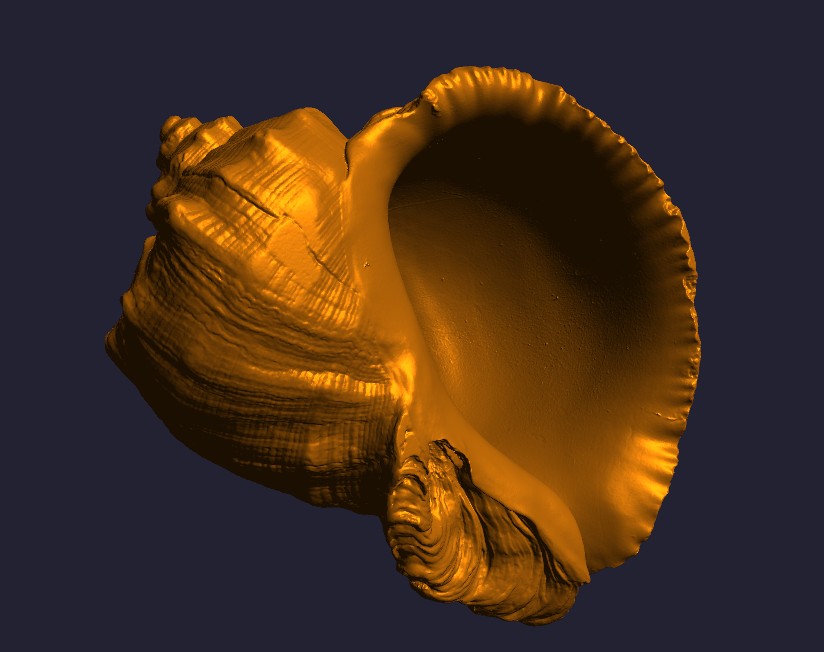

Large seashell
The longest dimension of this shell is 112 mm. Even so, the scanner captured every tiny detail. Our scanner is the only one that makes this possible.

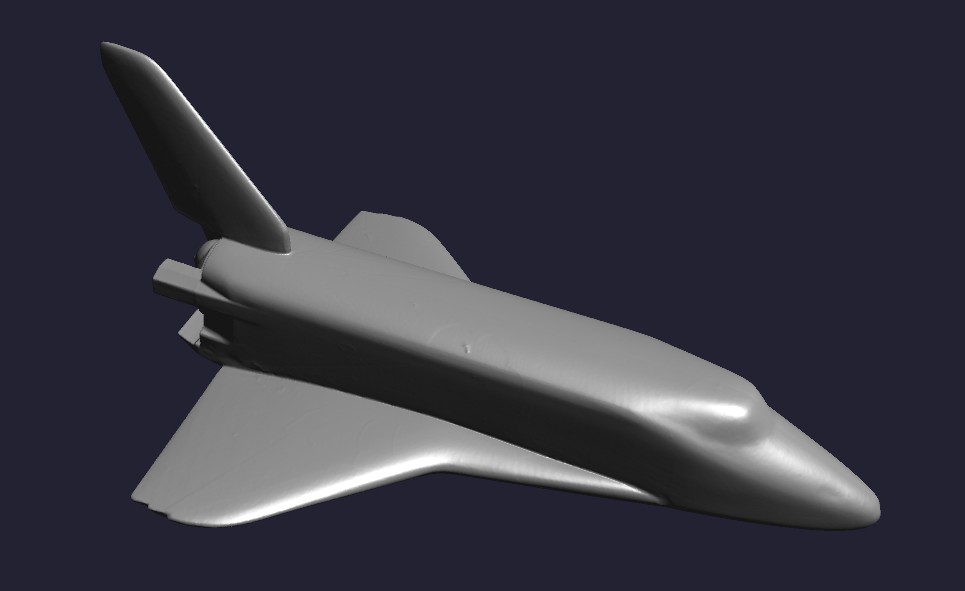

Buran space shuttle
The shuttle is 140 mm long with a 92 mm wingspan—an impossible size for other scanners at this resolution and accuracy. With scanning, you can convert legacy models into new CAD models.

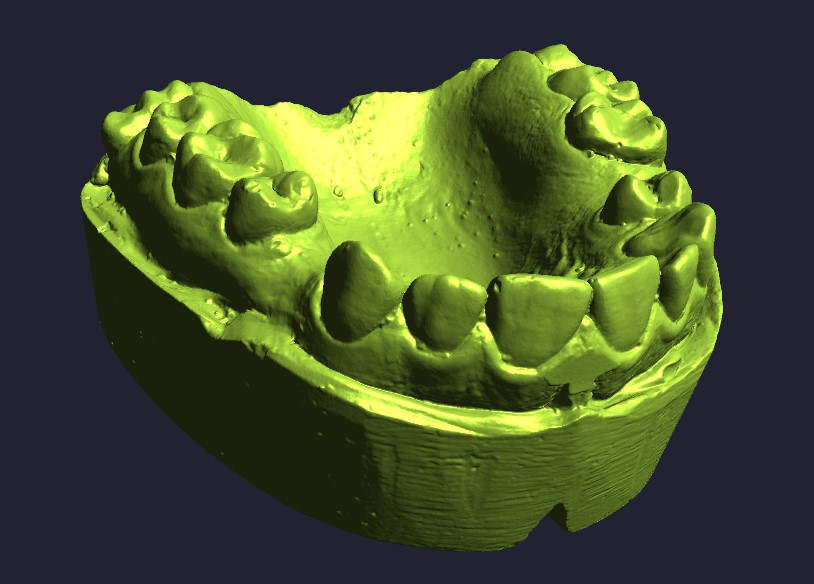

Plaster dental impression
70 mm—the model lets you analyze not only the teeth themselves, but also the plaster processing and material quality.

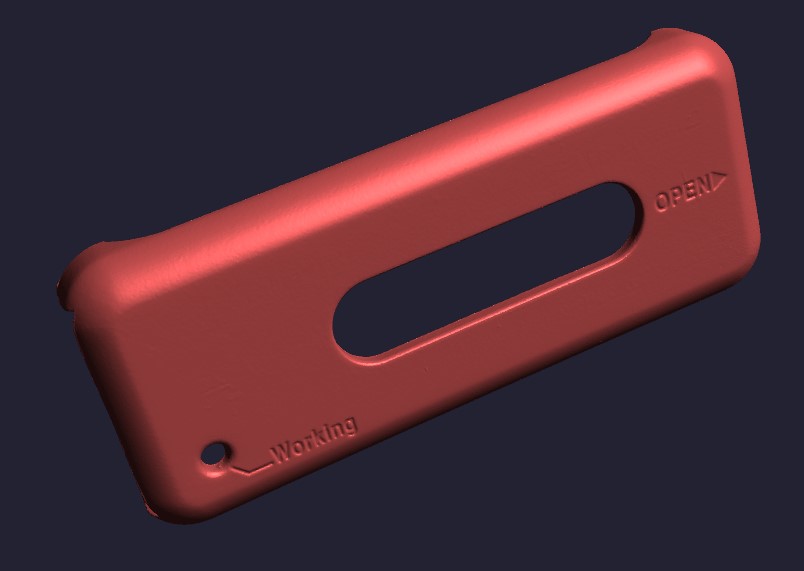

Battery charger cover
Just an 80 mm cover that looks small compared to the others—yet most jewelry scanners still can’t handle it.

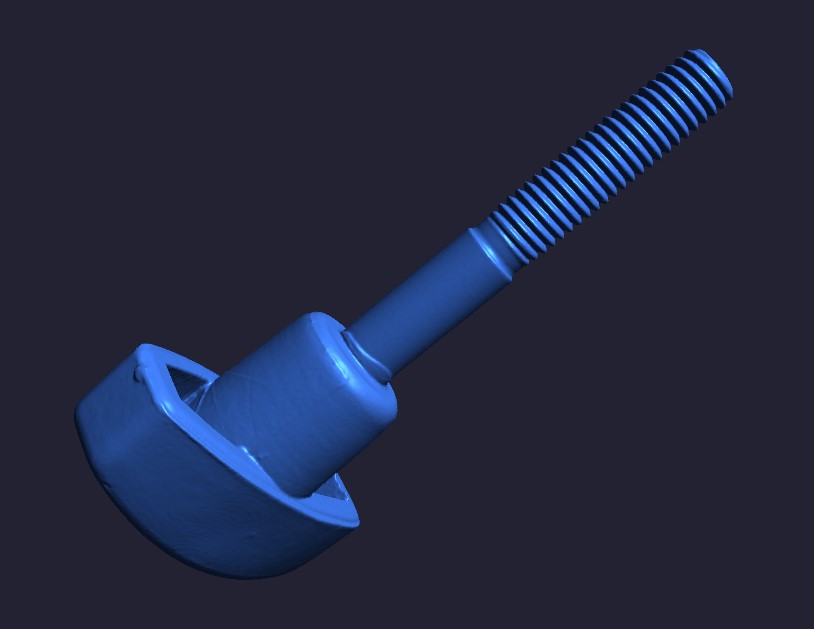

Bolt with a plastic handle
With a 3D scanner you can also analyze the quality of part joints and interfaces.

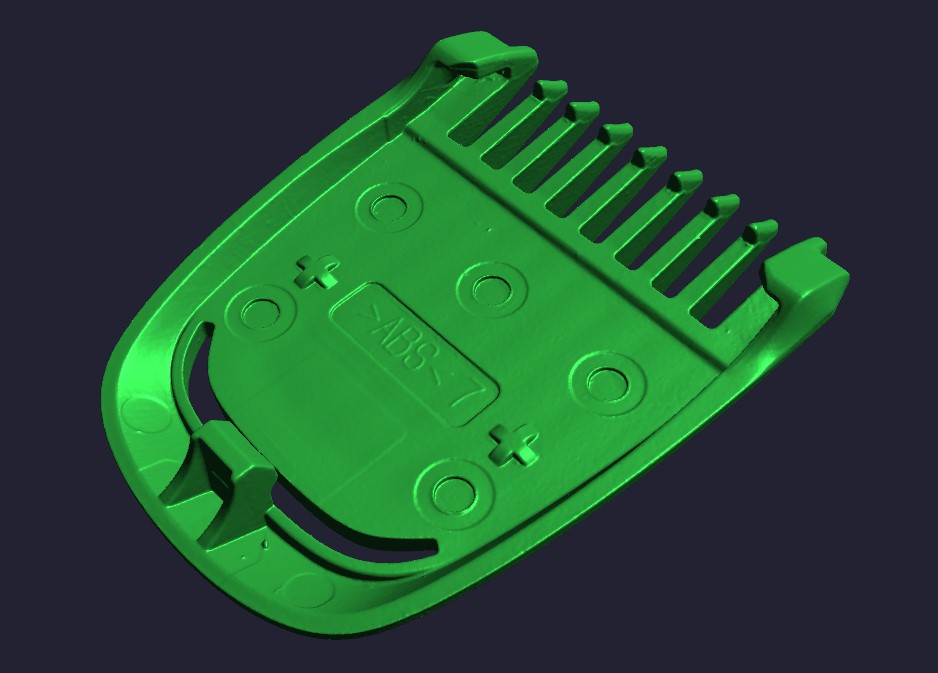

Electric shaver attachment
High detail lets you inspect how the injection mold works and whether everything on the production line behaves as designed.

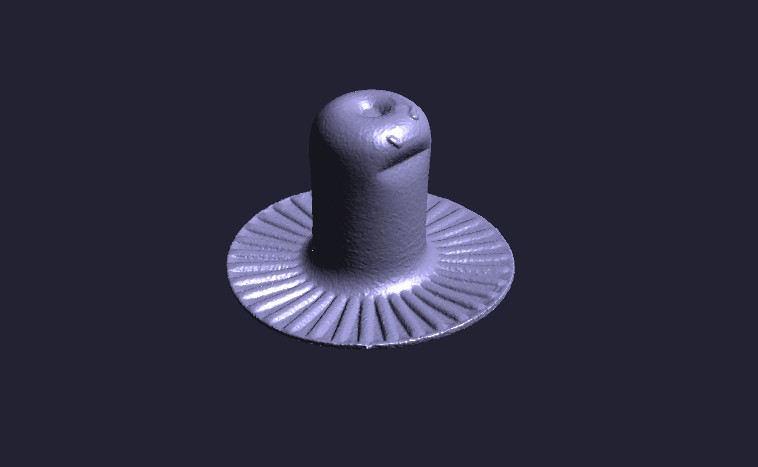

Metal snap button
This button is fingernail-sized—12 mm—but our scanner reveals every stamping defect so you can see why snaps don’t engage and scrap rates rise.
